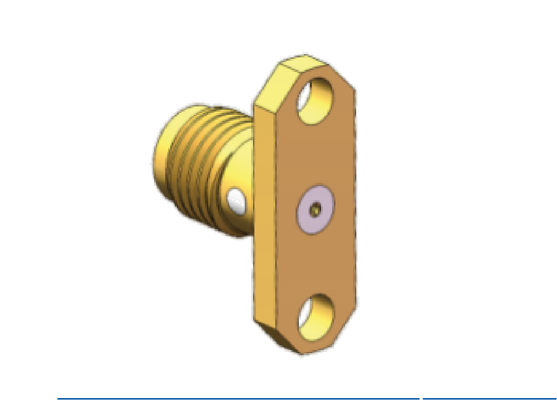

SMA RF Connector 18GHz Female Jack Edge Mount Flange Mount Accept Pin Diameter 0.3mm
|
Detalhes do produto:
Condições de Pagamento e Envio:
|
Descrição de produto detalhada
| Nome do produto: | Conector de RF SMA | Modelo: | SMA-KFD607 |
|---|---|---|---|
| Faixa de frequência: | 0,3 MHz-18 GHz | Impedância: | 50 ohms |
| DWV: | 750 V | Resistência de Isolamento: | ≥5000MΩ |
| Aceite o diâmetro do pino: | 0,3 mm | Maestro Central: | Liga de cobre com banho de ouro |
| Condutor Externo: | Liga de cobre com banho de ouro | Método de montagem: | Montagem em flange de montagem em borda |
| Gênero: | Jack Feminino | Isoladores: | PTFE |
| aplicativo: | Aplicação PCB, dispositivo de teste RF, chassi, telecomunicações, sistema de radar Phased Array, sis | ||
| Destacar: | SMA RF connector 18GHz female jack,SMA edge mount flange connector,SMA RF connector 0.3mm pin diameter |
||
SMA RF Connector 18GHz Female Jack Flange Mount for PCB Accept Pin Diameter 0.3mm
Product Description
Our high‑reliability c deliver exceptional performance for the most demanding RF and microwave applications. Engineered with precision miniaturization, they support a wide frequency range from DC to 18 GHz, with custom high‑performance versions available up to 26.5 GHz. Featuring ultra‑low insertion loss and return loss, these connectors maintain excellent signal integrity and stable transmission across high‑frequency systems.
Built with a rugged threaded coupling mechanism, they offer outstanding vibration resistance, mechanical durability, and long‑term reliability even in extreme operating conditions. This makes them perfectly suited for aerospace, automotive, communications, test equipment, high‑density PCBs, and compact microwave modules.
SMA RF connectors compact, lightweight design optimizes valuable board space without compromising electrical or mechanical performance. Combining consistent wideband operation, robust construction, and precision engineering, our SMA RF connectors outperform standard interconnects and provide a dependable solution for mission‑critical, high‑frequency RF systems.
Technical Data
Outline Dimension:
SMA RF Connector Model: Accept Pin Diameter 0.3mm, Hole Depth 2mm
Copper Alloy Gold Plating Jack PCB Edge Mount SMA RF Connector up to 18GHz Pin Diameter 0.3mm
Applications
- Aerospace
- Aviation
- Navigation
- Radar systems
- Communications
- Test Fixture
- Electronics
Our SMA RF Connectors use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Packing & Shipping
Packaging: Each Copper Alloy SMA RF connector is securely packaged in a sturdy cardboard box with foam padding to prevent transit damage.
RFQ:
Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components .
Q2: What products can you provide currently?
A: SMA, SSMA, SMP, SMPM, ASMP( bigger than SMP ), CSMP( smaller than SMPM ), N, TNC, TNCA, TMA, 2.92mm, 3.5mm, 2.4mm, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components.
Q3: Is free sample available for SMA RF Connector?
A: Yes, if have stock, free sample is available with freight collected.
Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.
Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.
Q6: What is the lead time of SMA RF Connector?
A: 5 days for sample orders, 3-4 weeks for mass production orders (based on different quantities, ODM , etc.)
Q7: How will you deliver SMA RF Connector to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.
Q8: How long do I need to wait before my SMA RF Connector arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.
Q9: How is your SMA RF Connector quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.
Q10: What is your warranty of SMA RF Connector?
A: Our warranty is 3 months after delivery, Elite Electronic pays high attention to after-sales service.
