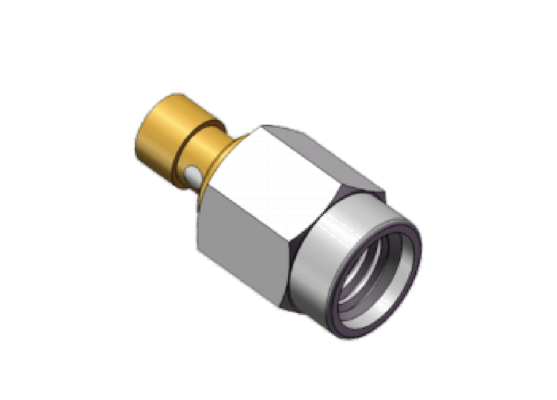

50 Ω 18GHz Mini SMA Male SSMA RF Coaxial Connector Mating Cable CXN3506 MF108A
|
Detalhes do produto:
Condições de Pagamento e Envio:
|
Descrição de produto detalhada
| Nome do produto: | Conector de cabo macho SSMA | Modelo: | SSMA-J506G |
|---|---|---|---|
| Faixa de frequência: | 0,3 MHz-18 GHz | Impedância: | 50Ω |
| DWV: | 750 V | Resistência de Isolamento: | ≥5000MΩ |
| Maestro Central: | Liga de cobre, banhada a ouro | Condutor Externo: | Aço inoxidável, passivação |
| Cabo de acasalamento: | CNX3506, MF108A | Isoladores: | PTFE |
| Amostras: | em estoque | ||
| Destacar: | 50 Ω 18GHz SMA male connector,SSMA RF coaxial connector MF108A,Mini SMA mating cable CXN3506 |
||
50Ω 18GHz SSMA Male Mini SMA RF Coaxial Connector Mating for Cable CXN3506,MF108A (Cable OD 2.3mm)
High-Frequency Performance up to 18GHz
The SSMA Series RF coaxial connector is a miniaturized version of the SMA connector, designed to be 30% smaller while maintaining excellent performance characteristics. Featuring a threaded interface (10-36UNF-2) and 50Ω characteristic impedance, these connectors support frequencies up to 30GHz.
Key Feature:
- Compact design - 30% smaller than standard SMA connectors
- Wide frequency band operation up to 30GHz
- High reliability for demanding applications
- Available in multiple configurations: straight, right angle, bulkhead, and flange mount options
- Stainless steel screw sleeve/barrel for durability
Interface of SSMA RF Coaxial Connectors
Mini SMA Plug RF Coaxial Cable Connector Dimenstion:
Model No.: SSMA-J506G ( mating cable CXN3506, MF108A, Cable OD 2.3mm)
Model:SSMA-J506G-2 ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Model:SSMA-J506G-4 ( mating cable CXN3506, MF108A, Cable OD 2.3mm )
Applications
Xi'an Elite Electronics specializes in systematic interconnection solutions for demanding industries including:
- Aerospace and aviation systems
- Navigation and radar equipment
- Communication systems
- Measurement instruments
- Electronics applications
Packaging & Shipping
Each SSMA RF Coaxial Connector is carefully packaged to ensure protection during transportation:
We use reliable courier services for prompt delivery, providing customers with tracking information upon shipment.
Other Products Catalogs
| SMA SSMA Connectors |
| SMP SMPM CSMP ASMP Connectors |
| mmW Connectors Catalog (2.92mm, 2.4mm, 1.85mm, 1.0mm, 0.8mm) |
| Between Series RF Adapter ( SMA to SSMA, SMP to SMPM, SMA to 2.92mm, SMA to N....) |
| N TNC TNCA Connectors |
| BMA SBMA Connectors |
| MCX & MMCX Connectors |
| Micro D Connectors J30J+J30J+J55A+J55AM+J56J |
| Hermetic Glass to Metal Seals |
| RF Coaxial Cable Assembly |
| Customized Product (Antennas, Filters, Power Dividers, Coupler, Waveguide Components, Test Fixtures, Package Modules) |
For more product models information or specification, please check our catalog or contact our sales team through:
