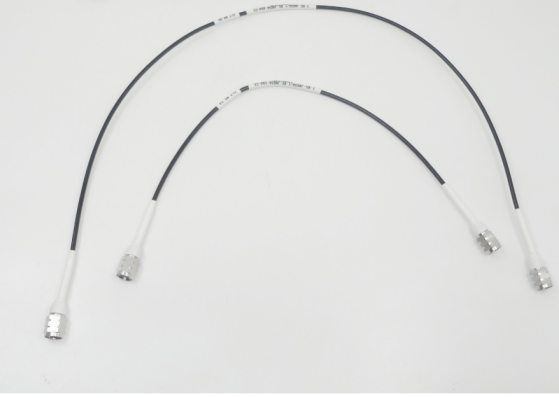

SMA Female to SMA Male RF Cable Assembly Mating CXN3506/MF108A Ensuring Performance in Wireless Communication Equipment

Product Description:

The RF Cable Assembly is a high-performance solution designed for demanding applications requiring reliable and efficient signal transmission. The SMA connector's pin is gold plated, ensuring excellent conductivity and resistance to corrosion, which significantly enhances the lifespan and reliability of the cable assembly. The gold plating not only protects the connector from environmental degradation but also minimizes signal loss, contributing to the overall high performance of the cable assembly. The gold plating on the connectors not only enhances electrical performance but also provides resistance to wear and corrosion, ensuring that the cable assembly maintains optimal performance even after repeated mating cycles. This durability is essential for applications where connectors are frequently connected and disconnected.

The combination of high insulation resistance, optimized cable diameter, and gold-plated SMA Male connectors delivers a product that excels in minimizing signal loss, reducing electromagnetic interference, and providing stable, high-quality signal transmission. This makes the RF Cable Assembly an indispensable component in high-frequency and high-performance electronic systems.

Technical Parameters:

Applications:

The ELT RF Cable Assembly, Utilizing the CXN3506 cable type, the ELT RF Cable Assembly boasts outstanding insulation resistance of ≥5000MΩ, ensuring minimal signal loss and excellent durability. The cable is grey in color and features gold-plated connectors that enhance conductivity and prevent corrosion, which is crucial for maintaining signal integrity in demanding environments. Custom lengths are available in 100mm, 200mm, 300mm, 500mm, and 1000mm, offering flexibility to meet specific installation requirements.

The RF Cable Assemblies, commonly employed in telecommunications, aerospace, and medical device applications. In telecommunications, these RF cable assemblies are essential for connecting antennas, radios, and other RF components, ensuring stable and high-quality signal transmission. In aerospace scenarios, the robust construction and high insulation resistance of the ELT RF Cable Assembly provide the reliability needed for harsh operating conditions.

The RF Cable Assembly is suitable for laboratory testing and instrumentation setups where precision and low signal interference are critical. Its gold-plated SMA connectors facilitate secure and consistent connections, which are vital in high-frequency measurement systems. The availability of custom lengths allows engineers and technicians to optimize cable routing and minimize signal degradation in complex assemblies.

Its combination of superior materials, customizable options, and compliance with international standards makes it an excellent solution across various industries requiring high-performance RF cable assemblies.

Customization:

ELT offers high-quality RF Coaxial Cable Assembly solutions, featuring the SMA series designed for reliable and efficient performance. SMA Cable Assemblies utilize the durable CXN3506/MF108A cable type with a cable diameter of 2.3 mm, ensuring excellent flexibility and strength for various applications.

Each cable assembly is equipped with high quanlity SMA connectors , providing secure and stable connections. Our Low Insertion Loss Cable Assemblies guarantee minimal signal degradation, supported by an insulation resistance of ≥5000MΩ and durability rated for mating cycles ≥500 times.

ELT's RF Cable Assemblies are certified with ISO9001 and ISO14001 standards, assuring customers of superior quality and environmental responsibility. Delivery time is estimated at 8-10 weeks,  Trust ELT for your RF Coaxial Cable Assembly requirements, combining performance, reliability, and customization of different length of cable.

Packing and Shipping:

Each RF Cable Assembly is carefully packaged to ensure protection during transit. The sma cable is coiled neatly and secured with a reusable tie to prevent tangling or damage. It is then placed inside an anti-static bag to protect against electrostatic discharge.

The anti-static bag is sealed and placed within a sturdy cardboard box with adequate cushioning materials such as foam inserts or bubble wrap to absorb shocks and vibrations during shipping.

For bulk orders, multiple individually packaged cable assemblies are consolidated in a larger shipping carton, with additional padding to prevent movement. We partner with reliable carriers to offer timely and secure shipping options, including tracking services for your convenience.
