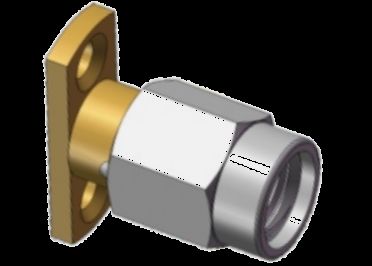

SSMA / Mini SMA Male Plug RF Coaxial Connector with 2 Hole Flange Mount Up to 18GHz
|
|
Detalhes do produto:
Condições de Pagamento e Envio:
|
Descrição de produto detalhada
| Nome do produto: | Conector Microstrip masculino SSMA reto | Modelo: | SSMA-JFD11 |
|---|---|---|---|
| Faixa de frequência: | 0.3 MHz-18 GHz | Impedância: | 50Ω |
| Tensão nominal: | 250V | DWV: | 750 V |
| Resistência ao isolamento: | ≥5000mΩ | Condutor central: | Liga de cobre, revestido de ouro |
| Condutor externo: | Liga de cobre, revestido de ouro | Método da montagem: | 2 Montante de flange de buraco |
| Isoladores: | Ptfe | Amostras: | Disponível, em estoque |
| Destacar: | SSMA male RF connector with flange mount,Mini SMA coaxial connector up to 18GHz,2 hole flange mount SSMA connector |
||
Straight SSMA / Mini SMA Male RF Coaxial Connector 2 Hole Flange Mount Up to 18GHz
Product Specifications
| Items | Value |
|---|---|
| Product Name | Straight SSMA Male Flange Mount Connector |
| Model |
SSMA-JFD11
|
| Frequency Range | 0.3MHz-18GHz |
| Impedance | 50Ω |
| Rated Voltage | 250v |
| DWV | 750V |
| Insulation Resistance | ≥5000MΩ |
| Center Conductor | Copper Alloy, Gold Plated |
| Outer Conductor | Copper Alloy, Gold Plated |
| Mount Method | 2 Hole Flange Mount |
| Insulators | PTFE |
Product Overview
Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.
Superior Mechanical and Electrical Performance Engineered for excellence, SSMA connectors provide superior mechanical stability and electrical performance. They are built to withstand demanding conditions, ensuring consistent and reliable signal transmission in critical applications. High Reliability in Demanding Applications With a focus on reliability, SSMA connectors are suitable for use in challenging environments. Their high durability and consistent performance make them a trusted choice for applications where failure is not an option.
Threaded Standard (10-36UNF-2) These connectors feature a threaded standard (10-36UNF-2), ensuring secure connections and ease of installation. This threading provides a reliable mating interface, reducing the risk of connection failures. Characteristic Impedance of 50Ω SSMA connectors are designed with a characteristic impedance of 50Ω, optimizing them for high-frequency applications. This impedance ensures minimal signal loss and reflection, providing clear and accurate signal transmission.
Frequency Operation up to 30GHz Capable of operating at frequencies up to 30GHz, SSMA connectors are suitable for a wide range of high-frequency applications. This high-frequency operation allows for versatile use in advanced communication systems and RF applications.Variety of Mounting Structures SSMA connectors are available in various mounting structures, including right angle flange mount, straight flange mount, right angle through hole PCB solder, straight through hole PCB solder, and bulkhead screws connect. This variety ensures compatibility with different design requirements and installation preferences.
SSMA RF Coaxial Connectors Interface Dimensions
SSMA / Mini SMA RF Coaxial Connector 2 Hole Flange Mount Dimensions
Outline dimensions for the SSMA-JHD11 (Unit: mm).
Other Model SSMA Male Plug 2 Hole Flange Mount RF Coaxial Connector:
Applications
Ideal for high-precision microwave signal transmission in:
- Microwave communication systems
- Measurement equipment
- Aerospace applications
- Radar systems
- Electronics fields
Packaging & Shipping
Packaging: Each SSMA flange mount connector is carefully packaged in protective cartons to ensure safe transit. Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Shipping: We use reliable courier services with tracking numbers provided for all shipments.Note: For other similar flange mount connector models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
